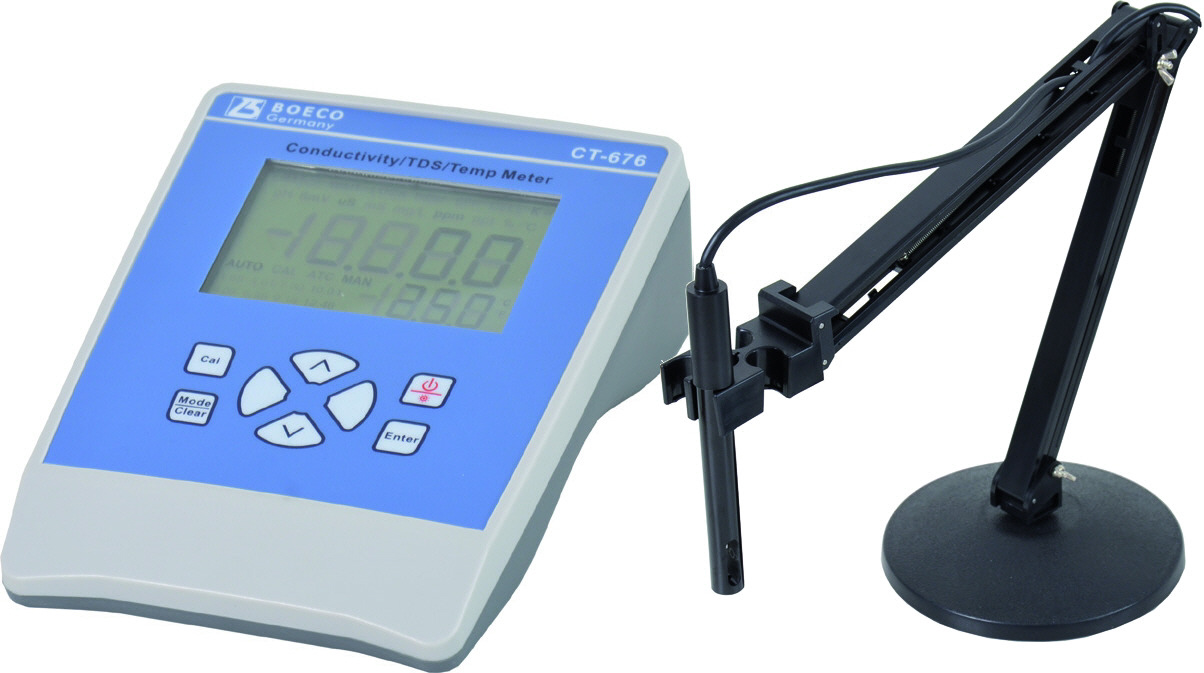

BOECO Bench Top Conductivity - CT-676

  • Simultaneous displays of conductivity, salinity or TDS with temperature measurements.
  • Convenient one point calibration. Calibration data is stored in memory and is ready for use on power up.
  • Adjustable TDS coefficient, reference temperature and temperature coefficient
  • Uses one conductivity cell for conductivity, salinity and TDS measurement
  • Accepts 4-wire conductivity cells with k=0,475 cell constant and 2-wire K=0,1 cell constant for improved flexibility and accuracy
  • Low battery indicator
  • IP54 waterproof case

The CT-676 will be delivered incl. the following standard accessories:
1 x 4-wire conductivity cell 3020P with k=0,475,
6 x 1,5V AAA batteries,
1 x operating manual,
1 x flexible electrode holder
Conductivity K = 0,475
Range Resolution Accuracy
0,0 to 475µS/cm 0,1µS/cm ±1% of reading +2µS/cm
475 to 4750µS/cm 1µS/cm ±1% of reading +5µS/cm
4,75 to 47,50mS/cm 0,01mS/cm ±1% of reading +0,05mS/cm
47,5 to 200,0mS/cm 0,1mS/cm ±2,5% of reading +0,5mS/cm

Conductivity K = 0,1
Range Resolution Accuracy
0.00 to 99,99µS/cm 0,01µS/cm ±1% of reading
100 to 200µS/cm 0,1µS/cm 0,1µS/cm

Range Resolution Accuracy
0,0 to 70,0 ppt 0,1 ppt ± 0,2 % Full Scale

Range Resolution Accuracy
-10,0 to 90,0 °C 0,1 °C ±0,2 % or ±4% Full Scale
whichever is greater

Reference Temp.: From 15,0 to 25,0°C, default is 25,0°C
Temperature Coefficient: From 0,00 to 4,00 °C, default is 1,91°C
TDS Constant: From 0,30 to 1,00, default is 0,65
Cell Constant 4 wire conductivity cell: K = 0,475
ATC Thermistor, 10K ohms, at 25°C
Power Requirement: 6 x 1,5 Volt AAA batteries or AC adaptor
Dimensions (LxWxH): 150 x 203 x 72 mm
Weight: 0,54 kg (6 x 1,5 V AAA Batteries included)

Code Description
BOE 5196760 Bench Top Coductivity/Salinity/TDS/Temperature Meter, Model CT-676 with 4-wire Conductivity Cell 3020P with 6 PIN connector, K=0,475 (50µS - 200mS/cm), with EURO plug
BOE 5196761 Idem, with US plug AC adaptor

Optional Conductivity Cell

Code Description
BOE 5190109 -wire Conductivity Cell 109P with 6 PIN connector, K=0,1 (0,0 - 200,0µS/cm)
