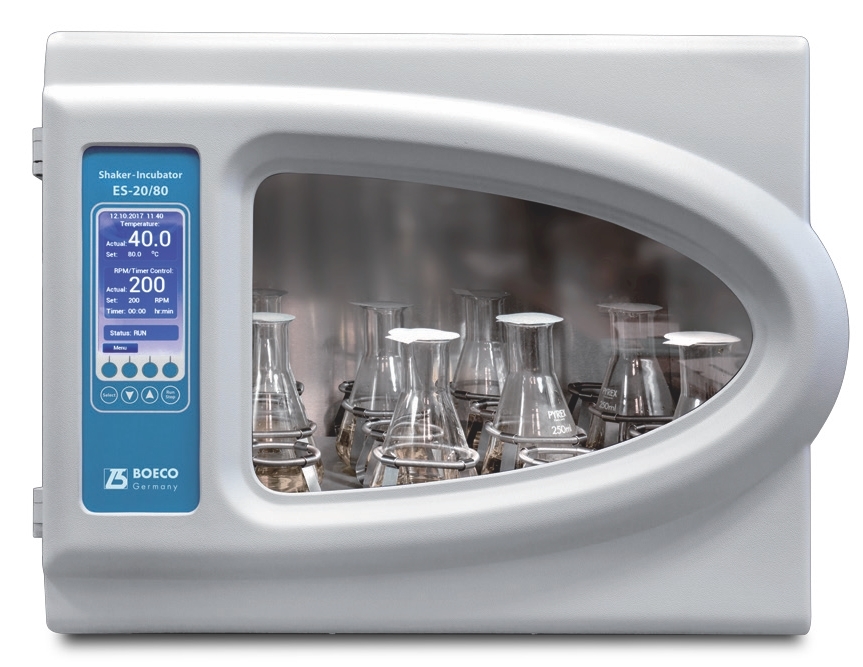

BOECO Orbital Shaker Incubator ES-20/80

Our BOECO ES-20/80 shaker-incubator for biotechnological and pharmaceutical laboratories is a professional category equipment.
The typical applications include microbiological and cell culture cultivation, protein expression, solubility studies, general mixing, as well as other various applications in the fields of biology and chemistry. The unit is equipped with a newly developed triple eccentric mechanism for platform motion that provides supreme balancing characteristics, superior reliability and quiet operation.
The achieved stability of the unit during vigorous mixing allows for stacking installation of up to 3 units which enables to save space.
The new display and easy to use user interface provide a clear and intuitive control of parameters and also allow data logging, storage and display over time.
Additional features like out of balance sensor and automatic thermostat failure detection make this shaker-incubator an advanced and safe product.
Bluetooth connectivity to PC allows for data management, data logging, parameter control and profiling in a dedicated software that can be requested separately.
A built-in heat-resistant brushless fan provides precise temperature distribution inside the chamber (from 10°C above ambient up to +80°C).
Additionally, excellent sample temperature uniformity of ±0.3 °C at 37 °C is achieved. The inner chamber is made of stainless steel.
State-of-the-art motor, thermal insulation materials and parameter PID-control decrease the energy consumption and make the shaker-incubator highly energy efficient despite its relatively large size.

Our BOECO ES-20/80 shaker-incubator for biotechnological and pharmaceutical laboratories is a professional category equipment.Available Q3/2018 !

Specification:
Speed control range50–400 rpm (increment 10 rpm)
Digital time setting1 min–96 hrs / non–stop (1 min increment)
Maximum continuous operation time30 days
Maximum load10,6 kg
Orbit 20 mm
Stacking up to 3
DisplayTFT
Data transfer Bluetooth
Temperature setting range+25°C... +80°C (increment 0,1°C)
Temperature control range 10°C above ambient... +80°C
Sample temperature uniformity±0,3°C at 37°C
Temperature precision ±0,1°C at 37°C
Temperature accuracy ±0,1°C at 37°C
Sample temperature stability ±0,1°C at 37°C
Heat up time to max. temperature 75 min
Overall dimensions (W×D×H) 620 × 530 × 510 mm
Dimensions of the inner chamber 460 × 350 × 400 mm
Weight 48 kg
Nominal operating voltage 230 V, 50/60 Hz or 120 V, 50/60 Hz
Power consumption230 V / 450 W (2 A) - 120 V / 450 W (4.5 A)
Code Description
BOE 8086000 Orbital Shaker Incubator ES 20/80
230V, 50/60Hz, without platform

BOE 8086100 Orbital Shaker Incubator ES 20/80
120V, 50/60Hz, without platform
