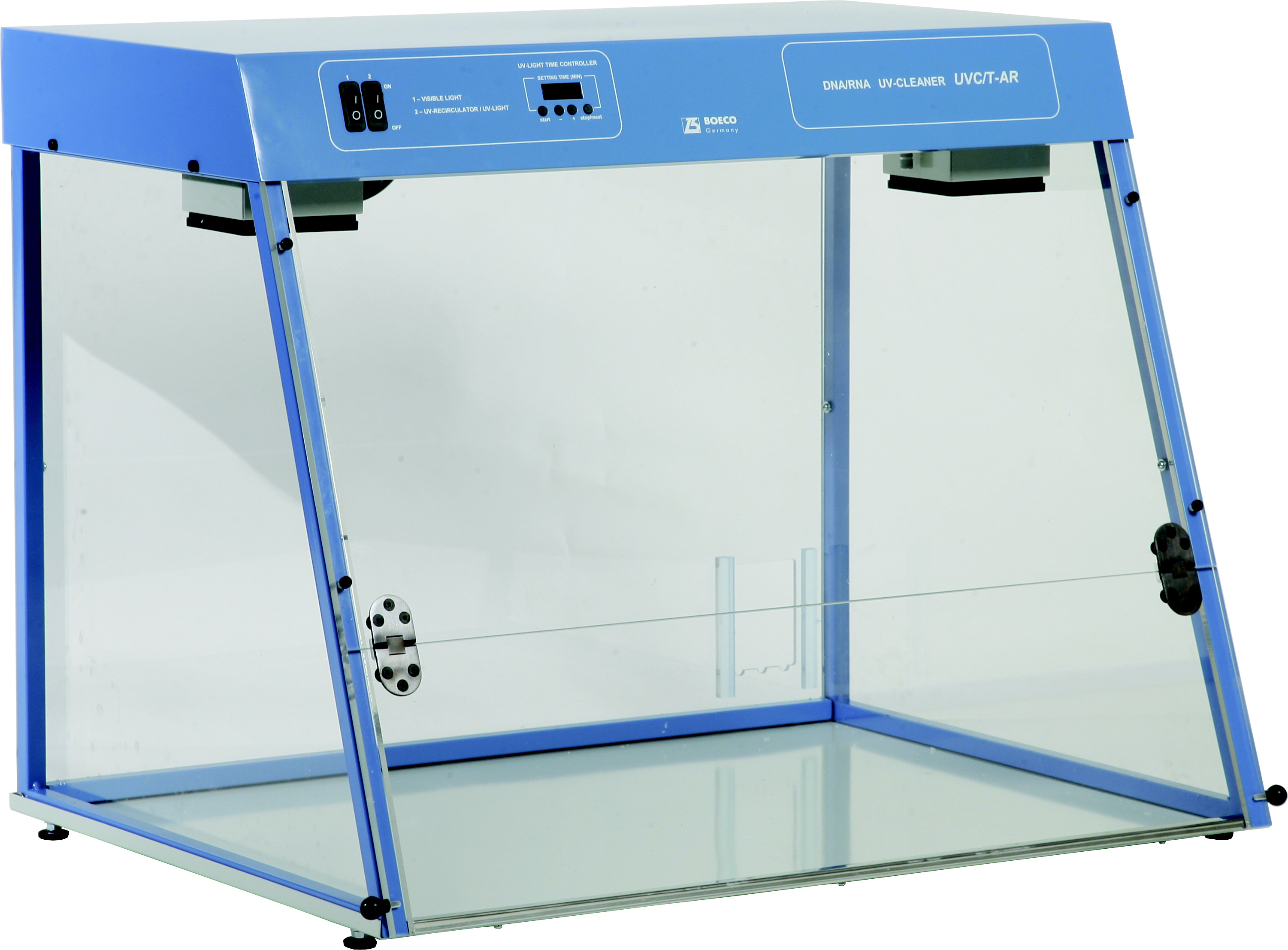

BOECO PCR Workstation with UV Air Recirculator

For the preparation of PCR reactions and many other methods in
molecular biology, a contamination-free working environment is
required. The UVC/T-AR PCR Workstation is designed for DNA/RNA
decontamination in the Laboratory working place.

The UVC/T-AR is a Bench top model, constructed from metallic skeleton
and Plexiglas and has a painted metal working place and a digital timer
control of UV exposure. One open 25 W UV-lamp substantially decreases
contamination level during UV-exposure (15-30 min).

White 15 W lamp provides local illumination of the working place and
ensures good conditions for visual control of operation.

The Model UVC/T-AR includes not only traditional UV source for direct
lighting the surface of the inner working place of the PCR-box, but also
additional UV air flow cleaner (UV - recirculator) for biosafety DNA
decontamination to protect the user from direct UV-light during operation.

UV-recirculator consists of a UV lamp, fan and dust filters organized in a
special box for maximum increasing (1000 x fold) density of UV-light
leading sufficiently to effectivity of DNA inactivation. UV-recirculator
generates 100 volumes of the PCR per 1 hour air flow exchange giving
maximum aseptic conditions inside the box.

  • No HEPA filters-Ozone free high density UV decontamination
  • Long Living UV Lamps (8000 hrs)
  • No Noise
  • low energy consumption
  • Compact bench top for Personal labs.

The PCR workstation UVC/T-AR is recommended for labs working in the fields of DNA analysis, genetic engineering, molecular biology.
Direct UV-lamp light:TUV 25W G13 UV-C Special Philips
Radiation type:Ultraviolet (254 nm), ozone free
UV-lamp lifr time:8000 hrs
UV-recirculator:TUV 25W G13 UV-C Special Philips
Digital time setting of direct UV-exposure 1 min - 24 h
Luminiescent (visible light lamp)15W/830 G13 Philips
Plexiglass type:Polymethylmethacrylate
Optical transmission:92 %
Thickness of plexiglass sides:4 mm
Thickness of upper front side:8 mm
Thickness of protective front screen:8 mm
Working place:650x475 mm
Overall size:690x535x555 mm
Power:100-240 V, 50/60 Hz, 67 W
Weight:23.0 kg
BOE 8040000PCR Workstation UVC/T-AR, 100-20VAC, 50/60 Hz
