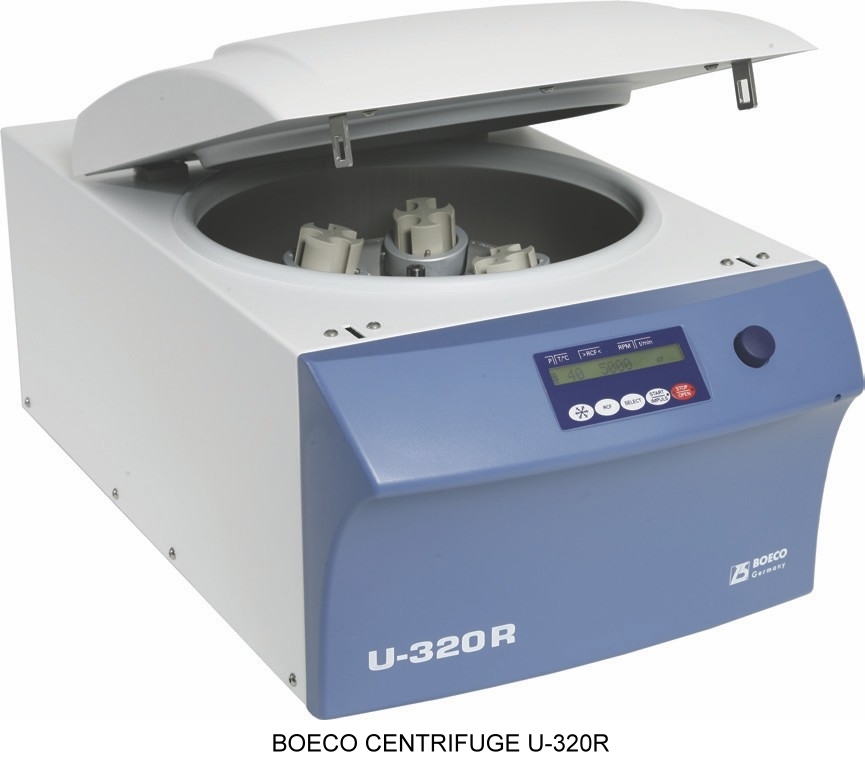

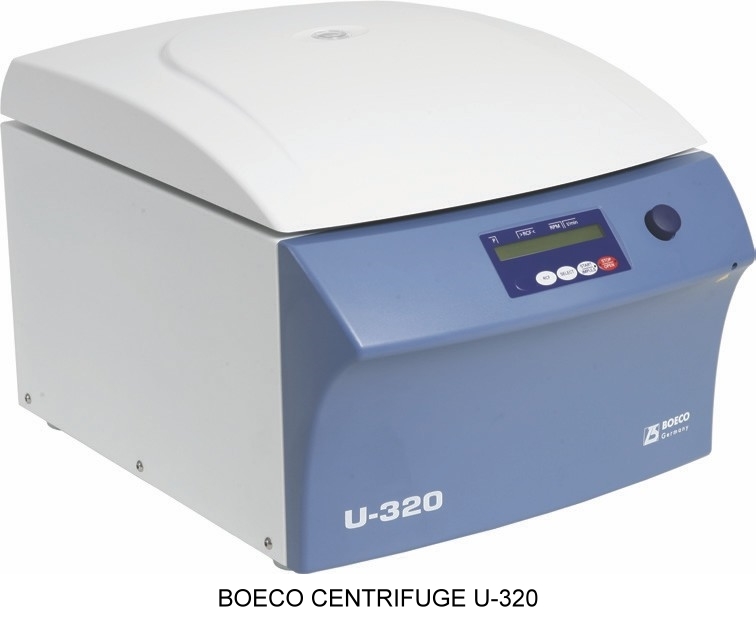

BOECO Centrifuges U-320 / U-320R

Because of their comprehensive range of accessories, the U-320 and U-320R centrifuges are the perfect universal centrifuges for routines in basic research and R&D laboratories of the pharmaceutical and biotechnical industry. The microprocessor controlled centrifuges have a brushless frequency drive (no carbon brushes) and a motorized lid locking.


  • High RCF
  • Extremely short run-up and run-down times


  • Metal housing, Metal Lid
  • Stainless steel centrifuging chamber
  • Viewing port in the lid

Refrigeration (U-320R)

  • Infinitely variable setting from –20 °C to +40 °C
  • Fast Cool function


  • Automatic lid locking
  • Emergency lid-lock release
  • Easily exchangeable rotors
  • 10 programmable memories
  • 9 acceleration and braking ramps, or unbreaked run-up or-run down time


  • Lid locking and holding during rotor run
  • Emergency lid lock release
  • Motor overheating protection
  • Chamber overheating protection (with U-320R)
  • Imbalance switch-off
  • Automatic rotor recognition
  • Lid dropping protection

Controls and displays

  • During centrifugation the actual values of the parameters are indicated
  • Change-over RPM/RCF: by entering the rotor radius r/mm the Centrifuge
  • will calculate/indicate speed or RCF.
  • Time preselection in steps of minutes and seconds /
  • Continuous operation
  • Temperature T/°C: Input in increments of 1°C
  • Impulse key: For short centrifugation operations

The U-320 / U-320R conform to safety regulations such as IEC 61010 or the CE mark and all relevant EC standards and DIN norms and have been manufactured under ISO 9001:2008

Technical detailsU-320U-320R
Max. Capacity: 4 x 200 ml, 6 x 94 ml 4 x 200 ml, 6 x 94 ml
Max. RPM (speed) / RCF: 15,000 RPM / 21,382 RCF 15,000 RPM / 21,382 RCF
Noise level (dependent on rotor):? 68 dB (A)? 58 dB(A)
Dimensions in mm (HxWxD): 346 x 395 x 520346 x 401 x 695
Net weight: approx 31 kg 53 kg
Emission / Immunity: EN IEC 61326-1, class B / FCC CLass BEN IEC 61326-1, class B / FCC CLass B
BOE 01401-13BOECO centrifuge U-320, 230-240V, 50-60 Hz, without rotor
BOE 01401-12BOECO centrifuge U-320, 110-127V, 60 Hz, without rotor
BOE 01406-13BOECO refrigerated centrifuge U-320R, 230-240V, 50-60 Hz, without rotor
BOE 01406-12BOECO refrigerated centrifuge U-320R, 110-127V, 60 Hz, without rotor
