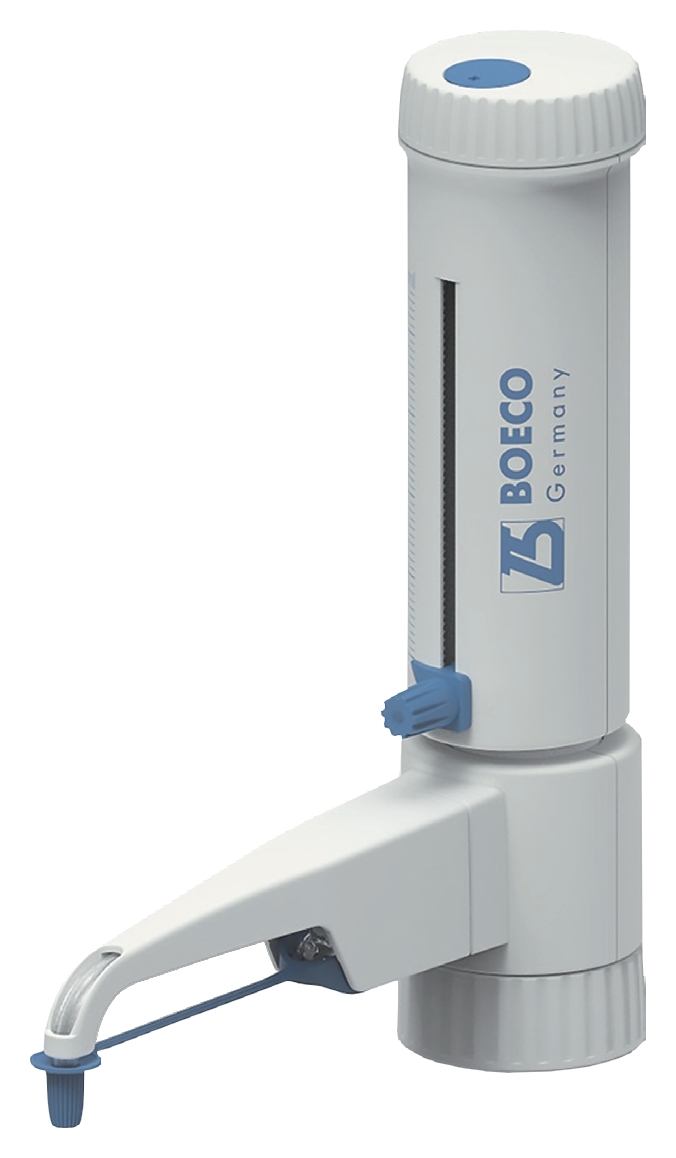

BOECO GP Series bottle-top dispensers are instruments with proven
precision that offer many advantages in routine liquid-handling operations.
The positive displacement piston in this instrument is equipped with a
fluoroplastic (PFA) sealing lip on the cylinder wall. This acts like a windscreen
wiper to prevent crystal build-up on the cylinder wall from readily crystallisable
media. The glass cylinder is also coated with a plastic material that reduces
the risk of splashes should breakage occur. The telescopic filling tube can be
adjusted smoothly to the height of the bottle.
Since the materials in contact with the media (Borosilicate glass, AI2O3ceramic,
ETFE, FEP, PFA, PTFE, platinum- iridium, PP (closure cap) are resistant to most acids, bases, and solvents, BOECO GP Series bottle-top dispensers can be used in practically any operation with salt solutions, acids, bases and many organic solvents.
BOECO GP Series bottle-top Dispensers are completely autoclavable at 121°C (2 bar) according to DIN EN 285
Also available with DAkkS calibration certificate or individual quality certificate.
Manufactured in Germany in accordance with ISO 9001:2008 / ISO 14001:2009 quality and environmental standards.
Limits and operating exclusions
Use Temperature from +15 °C to +40 °C of instrument and reagent
Steam pressure: max. 600 mbar;
Kinematic Viscosity up to: max. 500 mm2/s
Density: max. 2.2 g/cm3
Liquids attacking Al2O3-ceramic, ETFE, FEP, PFA and PTFE (e.g. dissolved sodium azide)
Liquids attacking borosilicate glass (e.g. hydrofluoric acid)
Nitric acid > 60 %, Tetrahydrofuran, Trifluoroacetic acid.
Explosive liquids (e.g., carbon disulfide)
Suspensions (e.g. of charcoal) as solid particles may clog or damage the
instrument. Liquids attacking PP (Closure cap)
BOECO GP Series Bottle-Top Dispenser, complete with 3 or 5 adapters (PP), telescopic filling tube, mounting tool, instruction manual, quality certificate, without reservoir bottle.
| Code | Volume | Thread at the
dispenser | Adapters | Filling
Tube | Increment | Inaccuracy | Imprecision |
| BOE 9900225 | 0,2 - 2,0 ml | 45 | GL25/28/32/38/S40 | 125-240 mm | 0,05 ml | ± 0,5 % | 0,1 % |
| BOE 9900550 | 0,5 - 5,0 ml | 45 | GL25/28/32/38/S40 | 125-240 mm | 0,10 ml | ± 0,5 % | 0,1 % |
| BOE 9900110 | 1,0 - 10,0 ml | 45 | GL25/28/32/38/S40 | 125-240 mm | 0,20 ml | ± 0,5 % | 0,1 % |
| BOE 9902525 | 2,5 - 25,0 ml | 45 | GL32/38/S40 | 170-330 mm | 0,50 ml | ± 0,5 % | 0,1 % |
| BOE 9905050 | 5,0 - 50,0 ml | 45 | GL32/38/S40 | 170-330 mm | 1,00 ml | ± 0,5 % | 0,1 % |
| BOE 9901100 | 10,0 - 100,0 ml | 45 | GL32/38/S40 | 170-330 mm | 1,00 ml | ± 0,5 % | 0,1 % |
Accessories
Accessories and Spare Partes for BOECO GP Dispensers
