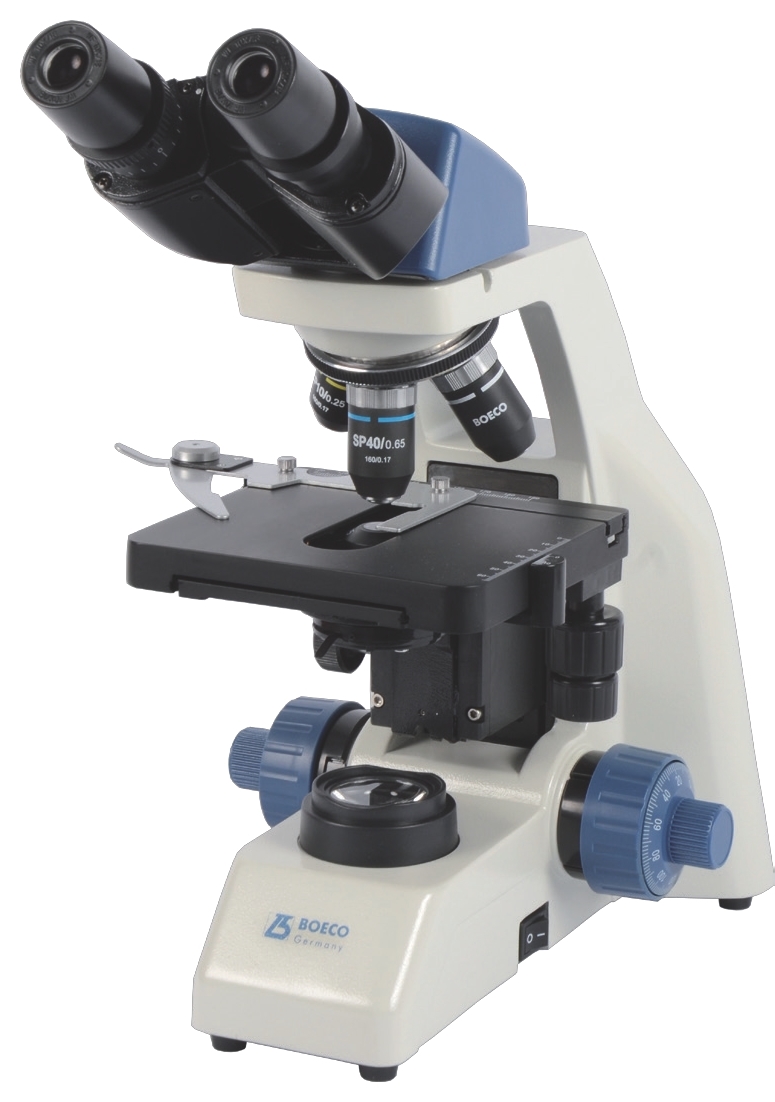

BOECO Binocular Microscope - BM-190 SP

Specification
Magnification: 40X- 1600X
Optical system: Siedentopf Viewing Head, 30° inclined, 360° rotatable, Interpupillary Distance 47 - 78 mm, diopter adjustable (left)
Nosepiece: Backward quadruple revolving nosepiece
Eyepiece: Pair Eyepiece WF 10X /18 mm Widefield
Objectives: BOECO Semi-plan Achromat DIN Objectives 4x/0.10, 10x/0.25, 40x/0.65 (S), 100x/1,25 (S, Oil)
Stage: Double layer mechanical specimen stage. 140 x 140 mm moving range 75 x 50 mm, Right hand stage handle
Focusing: Low position, coaxial coarse and calibrated fine focus control, with graduation reading 2 microns per division. Total focusing range 25 mm, Safety stop unit.
Condenser: Abbè Brightfield condenser, N.A. 1,25, Integrated Iris diaphragm and filter tray. With rack & pinion height adjustment
Illumination: S-LED, brightness adjustable.
Body /power: Sturdy body with supportive rubber and inbuilt power supply 100-240V, 50/60 Hz
Supplied with: Dust cover, green filter, immersion oil, instruction manual
Dimension: 208(W) x 266(D) x 370(H) mm
Weight: Net weight 6,9 / 7,2 kgs.
Packing: Styrofoam shelve in a cardboard box

Code Description Head Plug
BOE 1900.200 BM-190/SP Binocular Euro
BOE 1900.201 BM-190/SP Binocular US

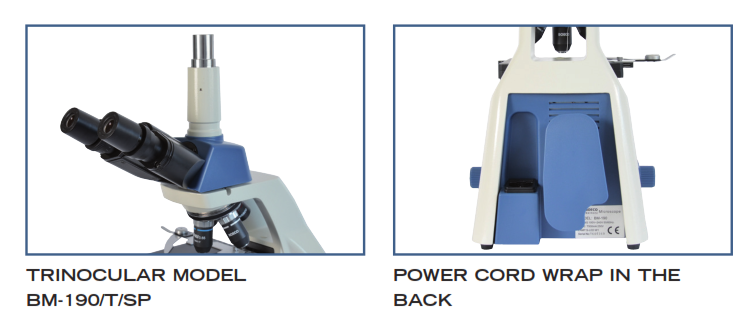

BOE 1900.230 BM-190/T/SP Trinocular Euro
BOE 1900.231 BM-190/T/SP Trinocular US

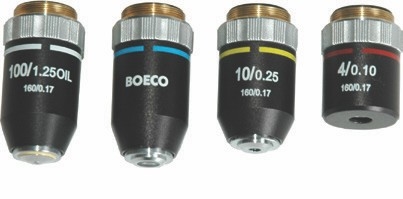

Objectives for BM-190/SP, BM-180/SP

Code Description
BOE 1800.413 BOECO Black Semi-Plan Achromat DIN Obj. 4X
BOE 1800.414 BOECO Black Semi-Plan Achromat DIN Obj. 10X
BOE 1800.418 BOECO Black Semi-Plan Achromat DIN Obj. 20X
BOE 1800.415 BOECO Black Semi-Plan Achromat DIN Obj. 40X (S)
BOE 1800.416 BOECO Black Semi-Plan Achromat DIN Obj. 100X (S)(Oil)
