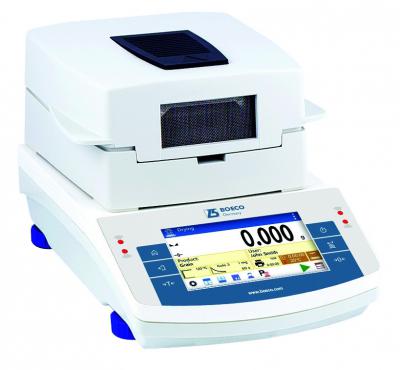

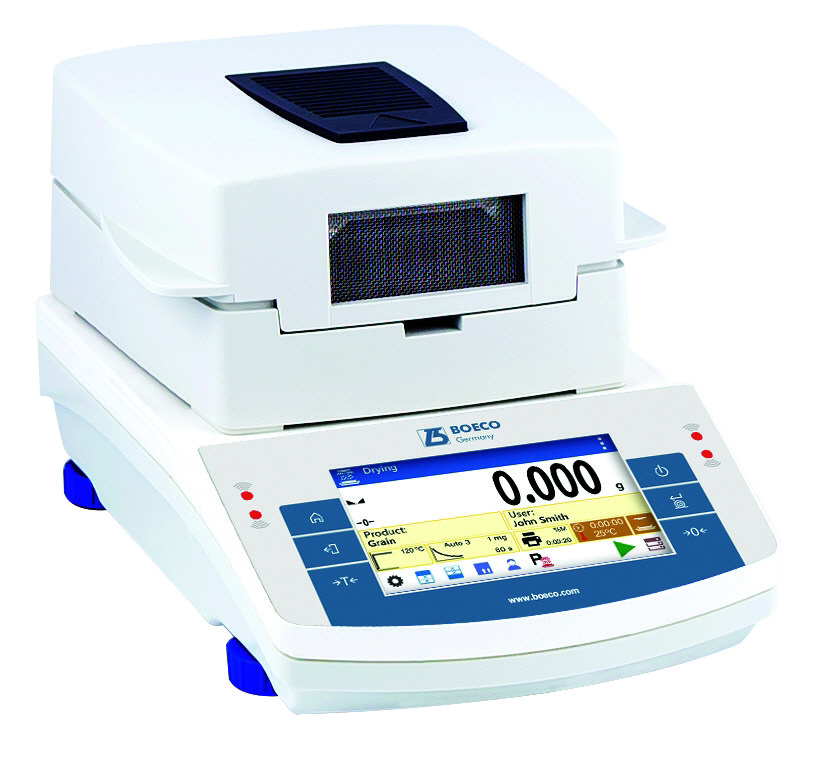

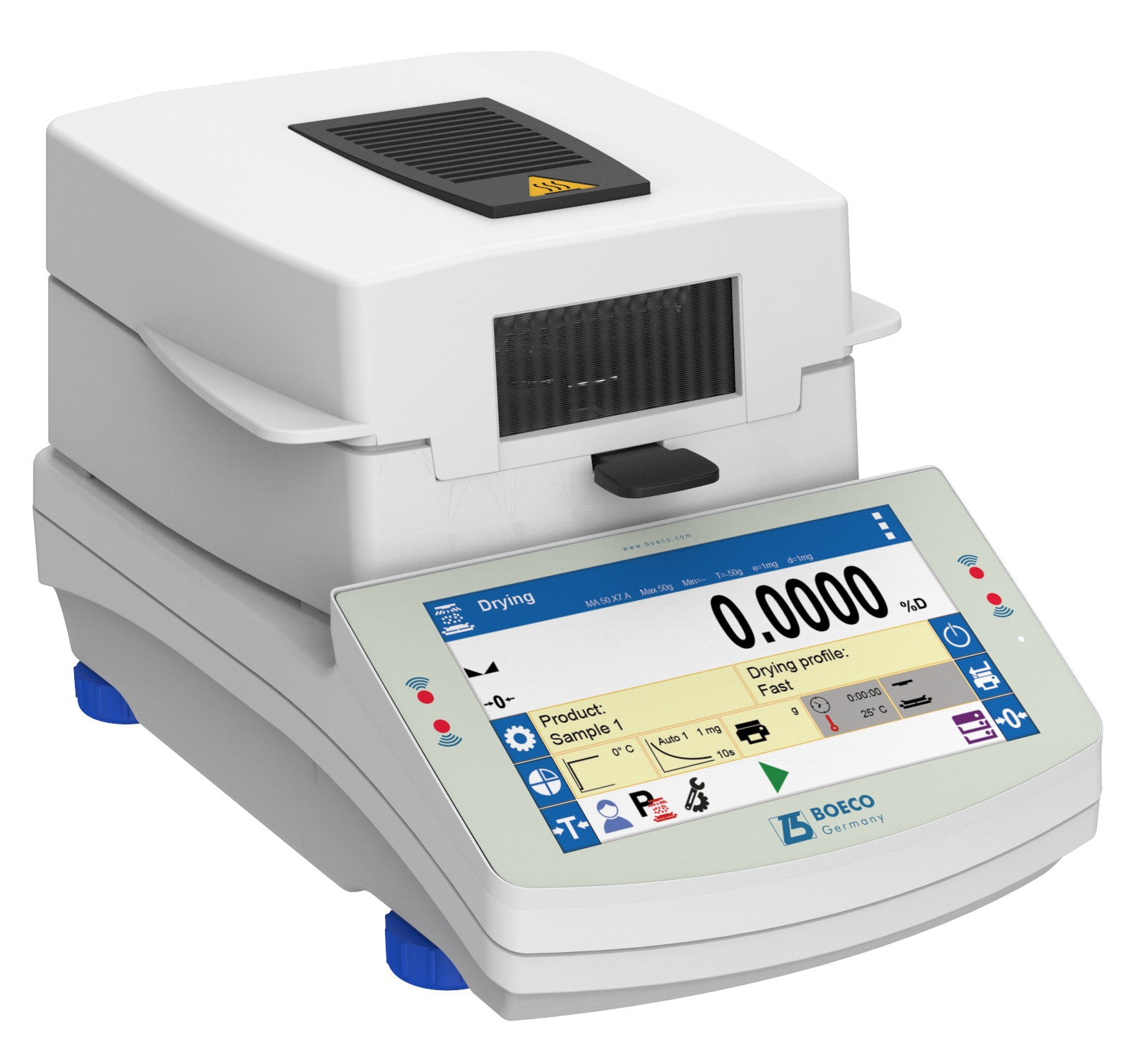

BOECO Moisture Analyzer BMX H50 PLUS, BMX I50 PLUS

BOECO Moisture Analyzer BMX H50 PLUS, BMX I50 PLUS
Models BMA H50 and BMA I50 with
- LCD 5“ capacitive colour touch-screen
- The drying chamber can be opened and closed automatically using button or proximity sensors.
- SMART DRY - prognosis of the Drying Process Result. It is an option dedicated for users who require fast and multiple estimation of the materials moisture content. SMART DRY method is a prognosis of the end result carried out before the drying process is completed.

  • drying modes
  • samples drying
  • water vapor permeability
  • halogen
  • humidity analysis
  • dry mass determination
  • elevated temperature level
  • GLP/GMP procedures
Specification BMX H50 PLUS BMX I50 PLUS
Heating Module Halogen emitter Infrared emitter
Range of Drying temp 250°C 160°C
Max. capacity 50 g 50 g
Readability 0,001 g 0,001 g
Tare range - 50 g - 50 g
Max mass sampling 50 g 50 g
Accuracy of moisture reading 0,001 % 0,001 %
Repeatability ±0,05 % (sample 2 g); ±0,01 % (sample 10 g) ±0,05 % (sample 2 g); ±0,01 % (sample 10 g)
Max. height of tested sample h = 20 mm h = 20 mm
Pan size ø 90 mm, h = 8 mm ø 90 mm, h = 8 mm
Drying modes 4 drying modes (standard, quick, step, mild) 4 drying modes (standard, quick, step, mild)
Auto switch off options 4 options (manual, automatic, time defined, and user-defined) 4 options (manual, automatic, time defined, and user-defined)
Aditional functions sample identification sample identification
Power of heating device 400 W 400 W
Interface 1xRS232, 2xUSB (A+B), WIFI 1xRS232, 2xUSB (A+B), WIFI
Proximity sensors 2 2
Display LCD 7“ colour graphic touch-screen LCD 7“ colour graphic touch-screen
Working temperature +10°C - +40°C +10°C - +40°C
Power Supply 110-240 V AC, 50/60 Hz 110-240 V AC, 50/60 Hz
Netweight / Grossweight 5,2 kgs / 6,7 kgs 5,2 kgs / 6,7 kgs
Size / Packing size 333x206x190 / 595x395x420 mm 333x206x190 / 595x395x420 mm
