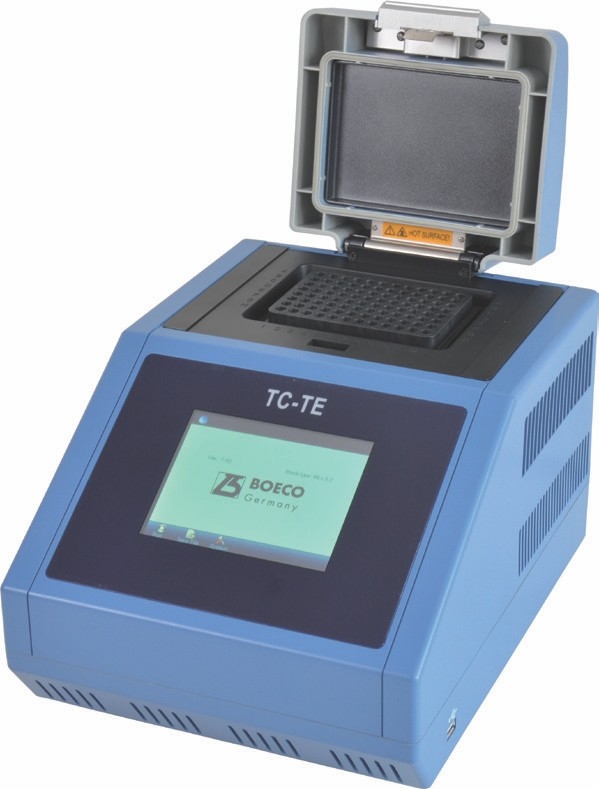

BOECO Thermal Cycler TC-TE
A personal Thermal Cycler with compact structure and small footprint and a friendly user interface with colored 5,7’ touch screen and a fixed gradient block for 96 x 0,2 ml which gives reliable results for teaching and research laboratories.
| specification: | |
| Sample capacity: | 96 x 0,2 ml, 8-strip, 24 x 0,2 ml plate |
| Cooling technology: | Peltier |
| Temperature control range: | + 4 ~ +99°C |
| Heating speed of ramping: | up to 4,0°C /sec |
| Cooling speed of ramping : | up to 4,0°C /sec |
| Block temp. uniformity: | ? ± 0,3°C |
| Block temp. accuracy: | ? ± 0,1°C (55°C) ?± 0,2°C ( ? 90°C) |
| Display resolucion: | 0,1°C |
| Temp. control mode: | Block or Tube |
| Ramping rate adjustable: | 0,1°C - 4°C |
| Memories: | 250 typical programs (unlimited by USB) |
| Max. cycles: | 99 cycles for Nested PCR |
| Time up/down: | 0-9 min59s, suit for LongPCR |
| Temperature up/down: | 0,1 - 9,9°C suit for TouchdownPCR |
| Soak function: | Yes |
| Gradient range: | 30°C ~ 105°C |
| Temp. differential range: | 1°C ~ 30°C |
| Temp. of hot lid: | 30°C -110 °C (Temp. / pressure adjusted) |
| Size: | 335 (W) x 260 (D) x 270 (H) mm |
| Weight: | 8 kg |
| Interface: | 1 x USB |
| Power Suppply: | 100 - 240V, 50-60 Hz <= 600W |
| code | description |
| BOE 8089602 | Thermal cycler TC-TE, 100-240 V, 50-60 Hz with gradient sample block for 96 x 0,2 ml |
