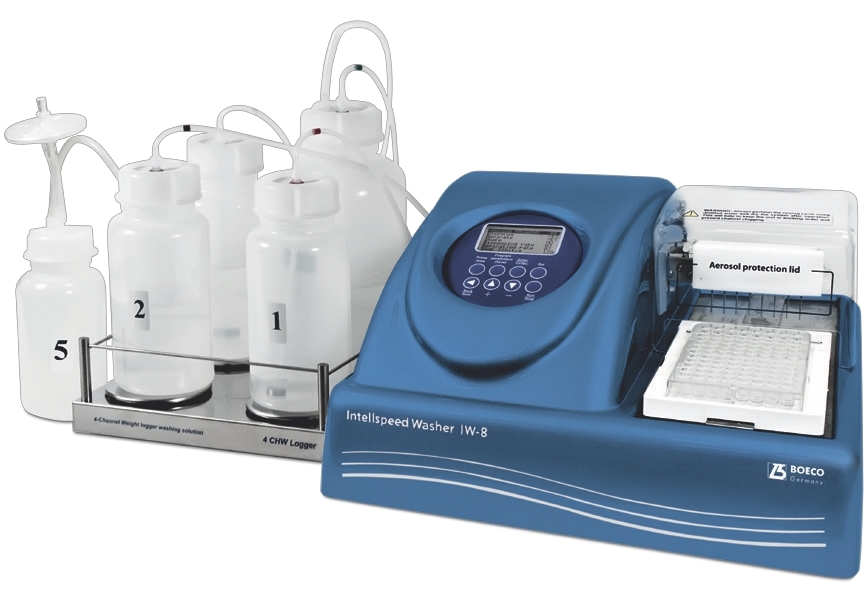

BOECO IW-8 Intelispeed Microplate Washer

The Intelispeed Washer IW-8 is designed for washing of standard flat-bottom 96 well plates and microstrips. The unit is fully programmable ensuring multi-step solution ripening, aspiration (aspiration, combination of aspiration/liquid dispensing and soaking, as well as soaking cycle during a particular period of time).

The unit has 100 user-defined programs. Standard version is supplied with 8-channel washing head for dispensing/aspiration, 3 bottles for washing and rinsing solutions, a waste bottle and bottle with filter. Optional 4-channel washing solution weight logger, 4 CHW Logger is available.

The unit is designed for washing standard 96-well plates during analyses.

The unit provides:

  • Washing mode
  • Rinsing mode
  • Mixing mode
  • Double aspiration
  • Possibility of additional solution mixing during time gap between two work cycles
  • Possibility to use microtest plates by different manufacturers, ensured by automated plate set up (adjusting to different depths of plate wells)
  • Plate and strip washing mode
  • User-defined programs with adjustable parameters
  • Saving work programs

The unit is designed for use in closed laboratory rooms at temperatures from +10 to +35°C and relative humidity up to 80% at +25°C decreasing linearly to 50% relative humidity at 35°C
4-channel washing solution weight logger, 4 CHW Logger provides automatic control of rinsing solution and waste volumes. The washer shows remaining volume for each bottle as percentage and gives a warning message in case of low solution volume or full waste bottle when 4 CHW Logger is connected.

Detection mode:Absorbance
Minimum dispense volume:25 µl
Maximum dispense volume:1600 µl
Dispense increment:25 µl
Dispensing accuracy:±2.5%
Allowed residual liquid volume in plate well: not more than 2 µl
Number of wells washed simultaneously: 8
Number of washing cycles for each channel: 1–15
Aspiration time:0.2–3 s
Aspiration/dispensing speed:3 levels
Max. number of channels in a program: 2
Soaking time:0–300 s (increment 10 s)
Shaking time:0–150 s (increment 5 s)
Number of washed rows:1 – 12
Time of plate single wash (350 µl), no more: 45 s
Number of programs:100
Plate platform and washing head movement: automated
Indication of operation modes:8-line LCD
Dimensions:375 345 180 mm
Weight with accessories:11 kg
External power supply:DC 12 V, 5 A
Consumed power, not more:60 W
4 CHW logger Specifications
Max. loading per scale cup:2 kg
Overall dimensions:267 × 252 × 97 mm
Weight:3 kg
BOE 8078000IW-8 Intelispeed Microplate Washer, 100-240 V, 50/60 HZ incl. bottles & external power supply unit
BOE 80780104 CHW logger
