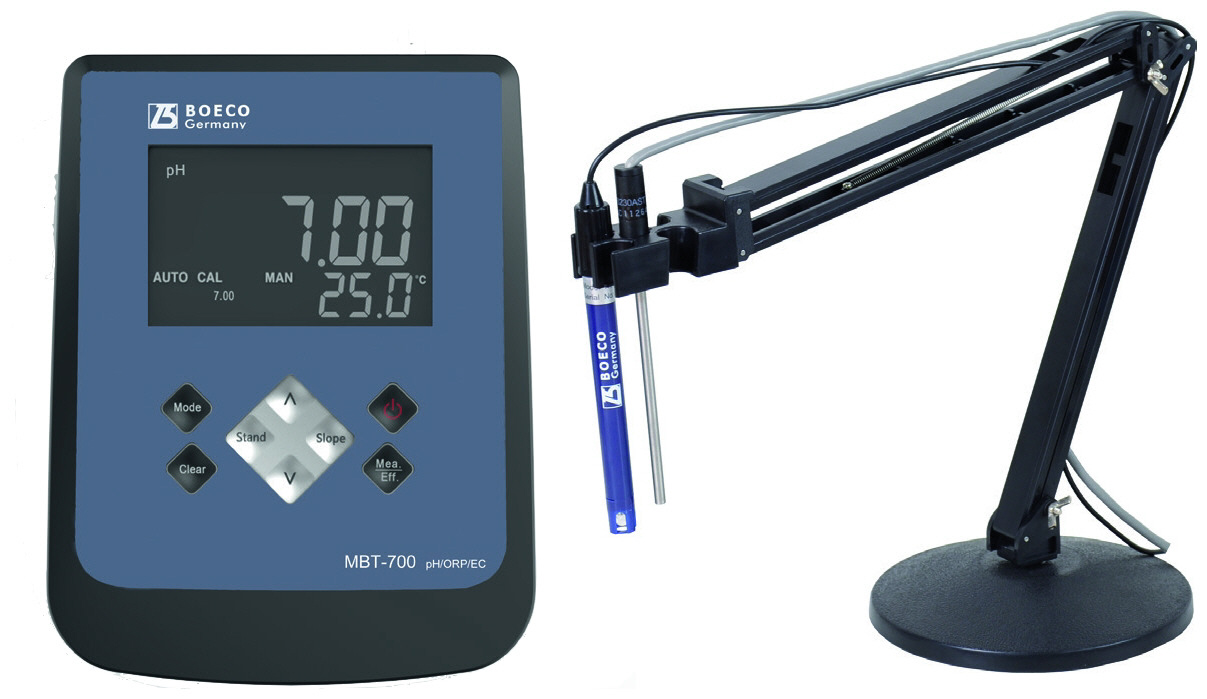

BOECO Multiparameter Model MBT-700

(1)

The properties of the BOECO Multiparameter pH/ORP/Conductivity/TDS/Salinity/Resistivity/Temperature Bench Top Meter Model MBT-700

LCD with backlight showing pH / ORP or Conductivity / TDS / Salinity and temperature readings
Two channel measurement allows measuring ph/ORP and Conductivity/TDS/Salinity simultaneously
Up to 5 point calibration for pH and one point calibration for conductivity
Automatic or manual temperature compensation
Automatic buffer recognition (NIST and USA)
Bluetooth function to connect to tablets. APP Name: BOECO E-CHem MBT-700 (App Store / Googleplay)
When the unit is connected to a bluetooth device, the user can store data into the device that meets GLP requirements.

The MBT-700 will be delivered incl. the following standard accessories:
1 x ATC probe,
each 1 x 500 ml Buffer solution pH 4,01, pH 7,00
1 x AC adaptor,
1 x operating manual,
1 x flexible electrode holder

Conductivity K = 0,475
Range	Resolution	Accuracy
0,0 to 475µS/cm	0,1µS/cm	±0,5% Full Scale
475 to 4750µS/cm	1µS/cm	±0,5% Full Scale
4,75 to 47,50mS/cm	0,01mS/cm	±0,5% Full Scale
47,5 to 200,0mS/cm	0,1mS/cm	±0,5% Full Scale

Conductivity K = 0,1
Range	Resolution	Accuracy
0.00 to 99,99µS/cm	0,01µS/cm	±0,5% Full Scale
100 to 200µS/cm	0,1µS/cm	±0,5% Full Scale

TDS

TDS Range

Resolution

Accuracy

0,001mg/l to 200,0g/l

0,01/0,1/1mg/l

±0,5% Full Scale

0.01/0,1 g/l

Salinity
Salinity Range	Resolution	Accuracy
0.0 to 80,0 ppt	0,1 ppt	±0,5 % Full Scale

mV
mV Range	Resolution	Accuracy
-1999,9 to 1999,9 mV	0,01 mV	±0,05% Full Scale

Specification:
Conductivity Calibration:	1 point in each range
ATC	Auto / manual 0,0 to 120°C
Input impedance:	>3x10
Temperature sensor:	Thermistor, 10K ohms at 25°C
Memory:	When the unit is connected to a bluetooth device, the user can store data into the device that meets GLP requirements
pH electrode connection:	BNC
Conductivity cell connection:	8 PIN connector
Connectivity:	Bluetooth
Power requirement:	6 x 1,5 Volt AAA Alkaline batteries or AC adaptor
Dimensions (LxWxH):	210 x 150 x 45 mm

Code	Description
BOE 5197700	Bench Top pH/mV/Ion/Temp Meter, Model MBT-700, AC adaptor, with standard accessories
